Seals mixed case sizes without manual changeovers
The SR-655 automatically adjusts to varying case heights and widths as boxes enter the machine. For operations that regularly seal multiple box sizes, it eliminates manual changeovers.
A.B. Sealer
SR-655 Semi-Automatic Random Case Sealer
This semi-automatic random case sealer is designed to efficiently seal corrugated cartons of varying sizes in manufacturing, warehousing, and distribution environments.
Tapes top and bottom seams in a single pass
The SR-655 applies tape to both the top and bottom center seams in a single pass. Top-of-the-line Piranha tape heads provide precise top and bottom sealing.
Attaches to a conveyor line or moves on casters
The machine can be attached to a conveyor line, with adjustable legs to match its height. Casters offer true portability for machine placement inside the plant.

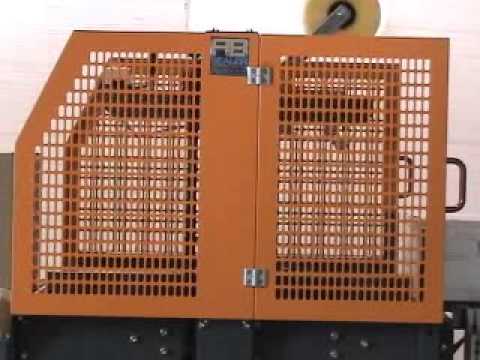

Operator protection with a clear view of sealing
Mesh steel guarding ensures operator safety. The safety guarding helps protect operators while maintaining visibility of the sealing process.
The machine is ideal for operations that process multiple box dimensions and provides reliable top and bottom tape application. Built for dependable performance and ease of operation, the SR-655 helps improve packaging productivity, reduce labor requirements, and deliver consistent sealing results across a wide range of packaging applications.
When the case enters the machine, the dimensions are automatically measured. The case is then pulled down the conveyor belt, where the top and bottom of the case are taped while moving down into the outfeed.
Features & Capabilities
- Dual masts with twin lead screws for stability
- Precise top and bottom sealingUses top-of-the-line Piranha tape heads.
- Plug-in operation
- Self-adjusting height and widthSaves the operator the time of manually adjusting each case. Made for inconsistent case sizes.
- Conveyor-line attachmentCan be attached to a conveyor line, with adjustable legs to match its height.
- CastersOffer true portability for machine placement inside the plant.
- Mesh steel guardingEnsures operator safety.
- Built for 24/7 operation
Frequently Asked Questions
Email sales@absealer.com for part orders. If the part number is not known, A.B. Sealer will provide a manual.
Optamate Catalog #55060974
Performance
| Speed | Up to 400 cases per hour |
|---|
Case capacity
| Case width | Min: 4.75"; Max: 20" |
|---|---|
| Case length | Min: 6"; no maximum |
| Case height | Min: 6"; Max: 20" |
| Larger cases | Capability available |
Utilities
| Electrical | 110VAC - 1PH-60Hz - 10 Amps |
|---|---|
| Air | 1 SCFM @ 70 PSI |
Physical
| Dimensions | 48.82"L x 38.11"W x 62.24"H |
|---|---|
| Weight | 700 lbs |
Configuration
| Operation | Semi-automatic |
|---|---|
| Case sizes | Random |
| Drive | Side belt drives |
| Piranha tape head | 2" standard |
Options & Add-ons
Configuration options
Piranha Tape Head
Available in 1.5", 3", and 6".
Comes standard in 2".
Leg Extensions
Replaces the standard legs for more working height.
Footpads
Replaces casters for leg supports.
Other options
Extension Roller Table
An extra 19.6" of workspace.
Spare Part Kits for Tape Heads
Available in 2" and 3".
