Erects and bottom-seals each case automatically
The swing arm picks and erects each knocked-down case one at a time, and the bottom minor and major flaps are folded and sealed with tape.
A.B. Sealer

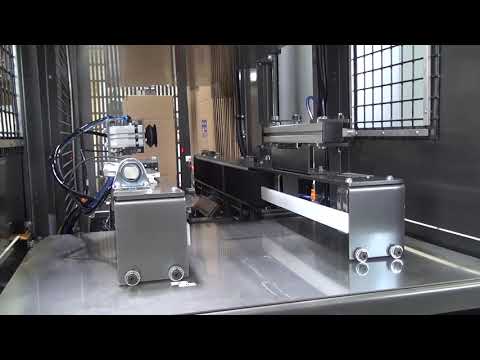

Hot Melt Case Erector

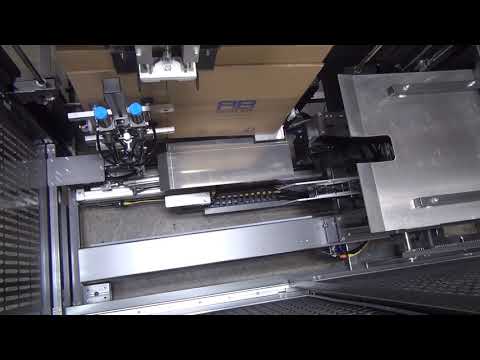

In this fully automatic case erector, knocked-down cases are loaded into the machine. The swing arm then picks and erects each case one at a time. The bottom minor and major flaps are folded and sealed with tape, and the completed case is pushed through the conveyor.
Reload without stopping, output on demand
The 100-case loading dock is designed for easy loading during operation, and standard On-Demand operation gives total control of erected case output.
Easy to learn and quick to change over
Intuitive operation makes start-up and training easy, and the operator-friendly design allows case-size changeover in minutes.
Key specs
Speed
Up to 12 cases per minute
Case width
Min: 6"; Max: 14"
Max KD case (L + W)
28"
Case height
Max: 30"
Power requirement
220V
Features & Capabilities
- Speeds up to 12 cases per minuteRuns rectangular or square cases in RSC, HSC, or CSSC styles.
- Rapid case-size changeoverOperator-friendly and designed for changeover in minutes.
- Loading dock fits 100 KD casesDesigned for easy loading during machine operation.
- Attaches to a choice of sealersIncluding pressure-sensitive tape or hot-melt glue adhesive sealers.
- "On-Demand" operationStandard, for total control of erected case output.
- Intuitive operationMakes start-up and training easy.
- Widest range of case stylesAccommodates rectangular, square, RSC, HSC, and CSSC style cases.
- Optional castersOffer true portability for machine placement inside the plant.
- Built for 24/7 operation
Optamate Catalog #01249945
Performance
| Operation | Fully automatic |
|---|---|
| Speed | Up to 12 cases per minute |
| Loading dock | 100 KD cases |
Case Sizes
| Case width | Min: 6"; Max: 14" |
|---|---|
| Max KD case (L + W) | 28" |
| Case height | Max: 30" |
| Larger cases | Capability for larger cases |
| Case styles | Rectangular or square; RSC, HSC, or CSSC |
Utilities
| Power requirement | 220V |
|---|---|
| Air | 5 SCFM @ 90 PSI |
Dimensions
| Footprint | 108.43" L x 68" W x 91.20" H |
|---|
Configuration
| Sealers | Pressure-sensitive tape or hot-melt glue adhesive |
|---|
Options & Add-ons
Caster Option
Achieves true portability with casters.
Low Magazine Indicator
A sensor that provides a visual indication when the magazine is running low.
Collapsible Handles
A compact solution that prevents snags from the handle.
Hot Melt Spare Parts Kit
A kit for the common parts on the Hot Melt that are subject to wear and tear.
